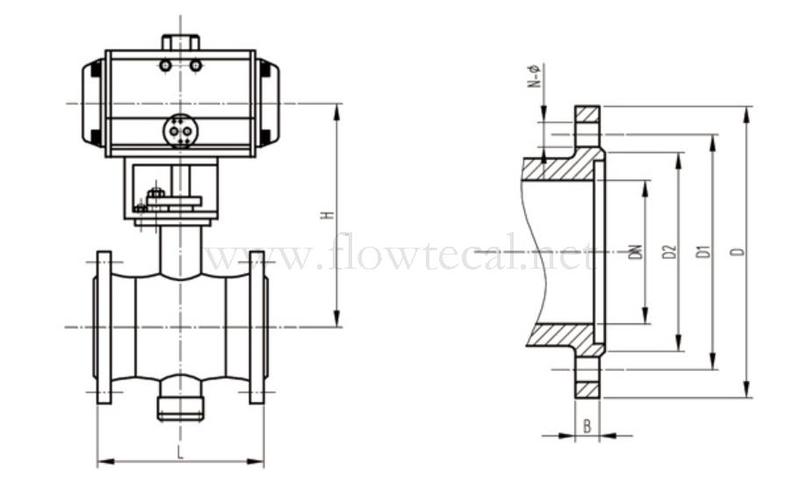

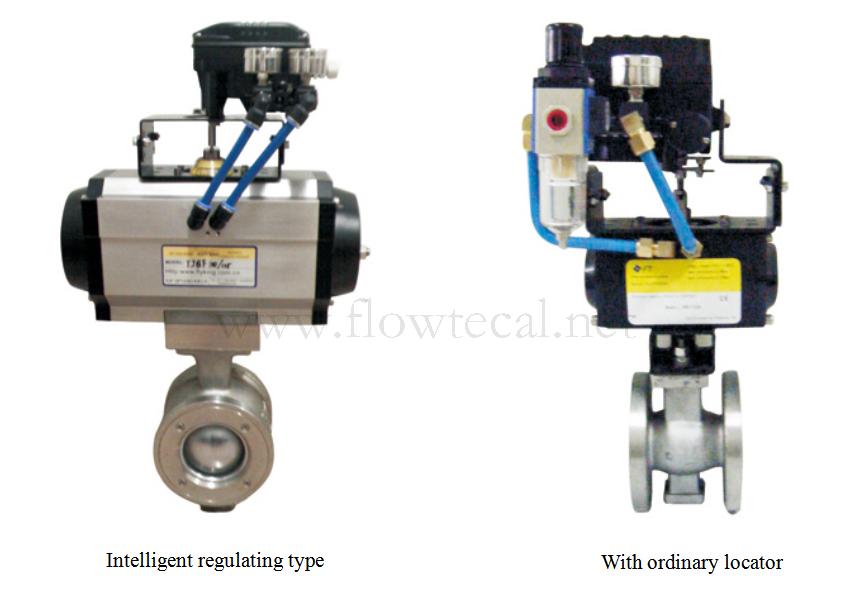

Pneumatic V-Type adjusting ball valve

Suitable fluid ：Petroleum、chemical、papermaking、chemical fiber、electric power、metallurgy、pharmaceutical and environmental protection

Material：WCB、CF8、CF8M

Input signal：4-20mA.DC

Suitable pressure：1.6Mpa-4.0MPa

Working Temperature：-20℃~300℃

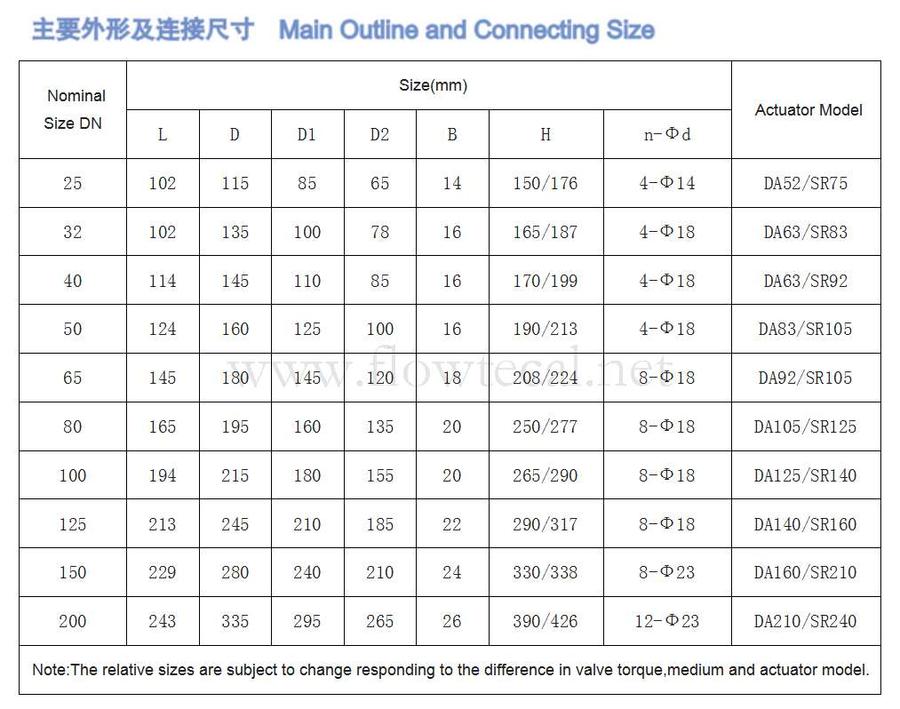

Specs：DN25-DN600

Flow coefficient：KV27-23000

Leakage：GB/T4213-92IV

　　Pneumatic V-Type Adjusting Ball Valve（Download）
