I Technical parameters
Oil tank capacity：150L/200L/250L（Specific can be customized according to the actual needs of customers）
Maximum working pressure：170 bar
Voltage：380V/50Hz/3Ph（440V/60Hzand 220V/60Hz are available）
Power：2.2KW/3KW/4KW
Energy accumulator：6.3L～240L（Specific can be customized according to the actual needs of customers）
Normal working pressure：135bar
Relief valve settingpressure：180 bar
Pressure relief valve sets the pressure：135 bar
II Case Show

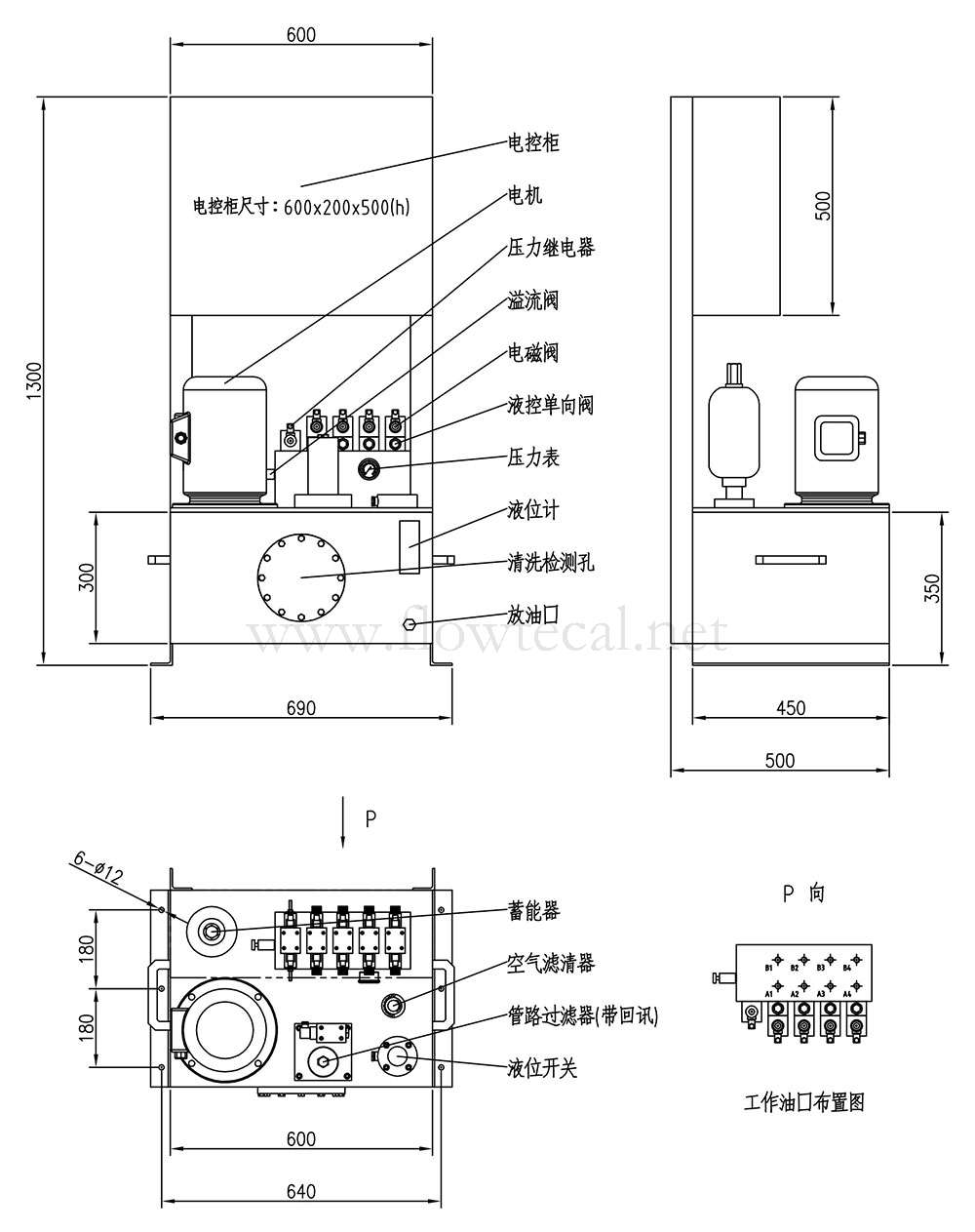

1.Outside drawing

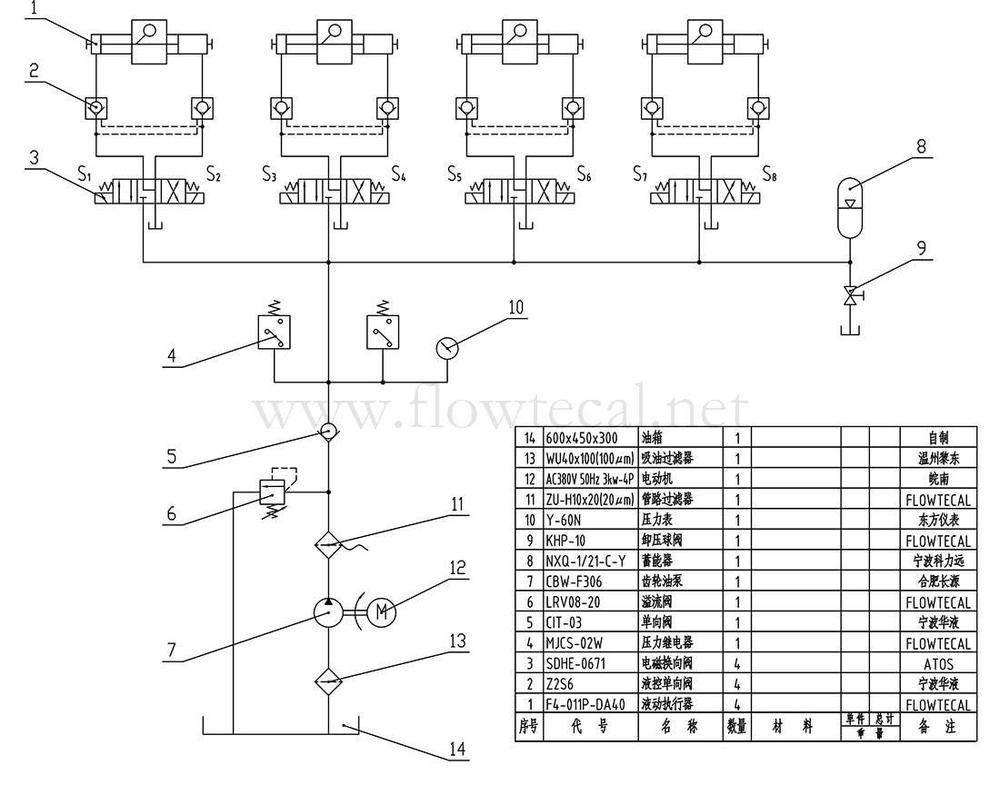

2.Hydraulic principle diagram
III Product display
Large Marine Hydraulic Remote Control Main Pump Station（Download）
